Home > Products >Hinges/Pocket Door>Hettich>Hettich Soft and Self Close - Hettich Pattern 52mm>Hettich 110º Soft Close - Hettich Pattern>Hettich 110º Soft Close F/O - Screw On - Hettich Pattern

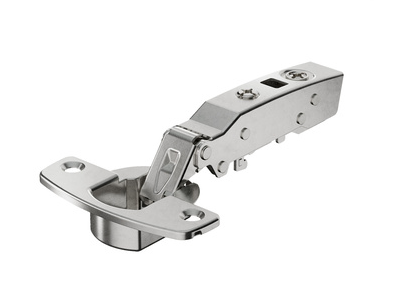

Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
Hettich 110º Soft Close F/O - Screw On - Hettich Pattern
SKU: 9071205
View related products
Brand
Hettich
Closing Type
Soft-Close
Hinge Mounting
Screw-on
Opening Degree
110°
Material / Finishes
Zinc / Steel
Overlay
Full Overlay

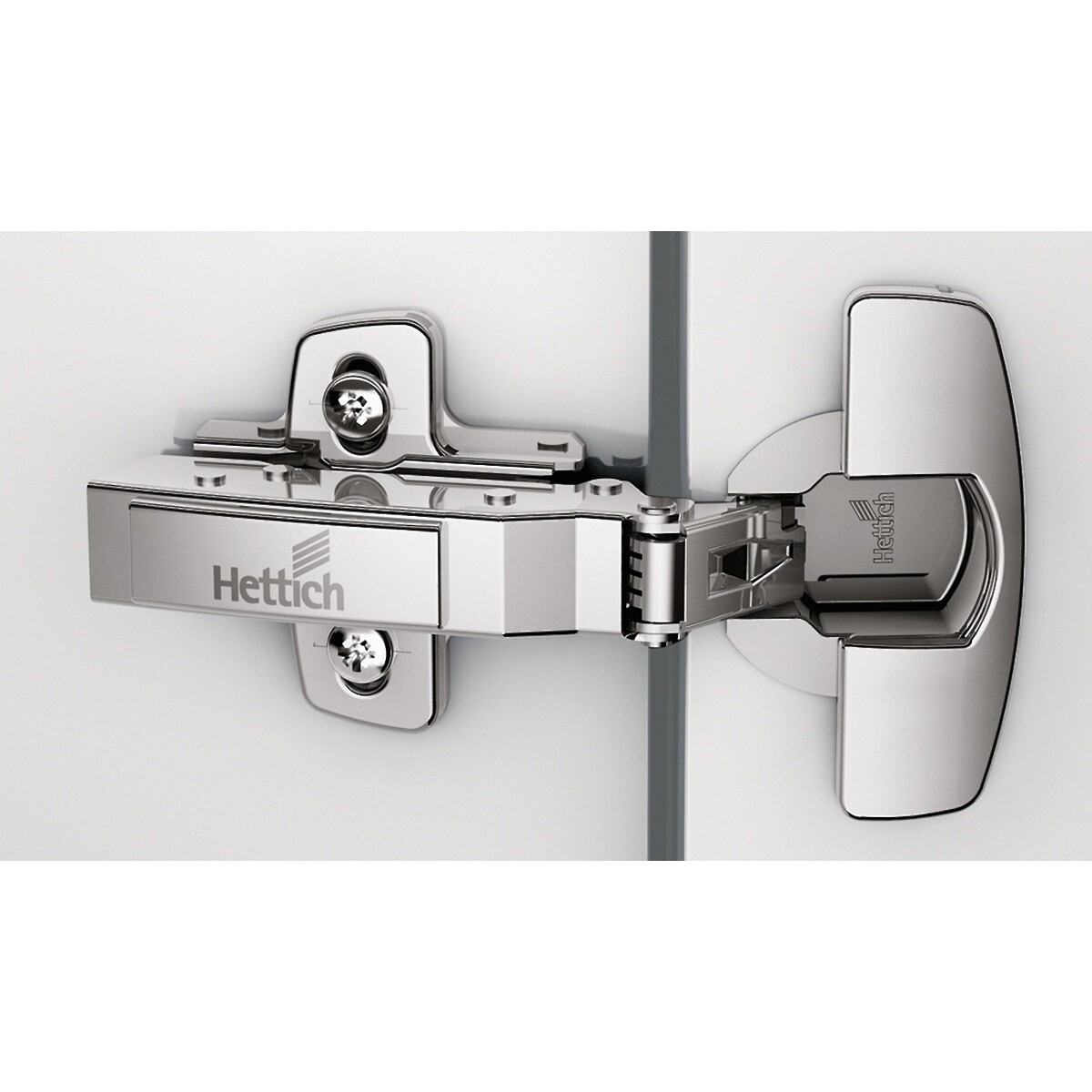

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm

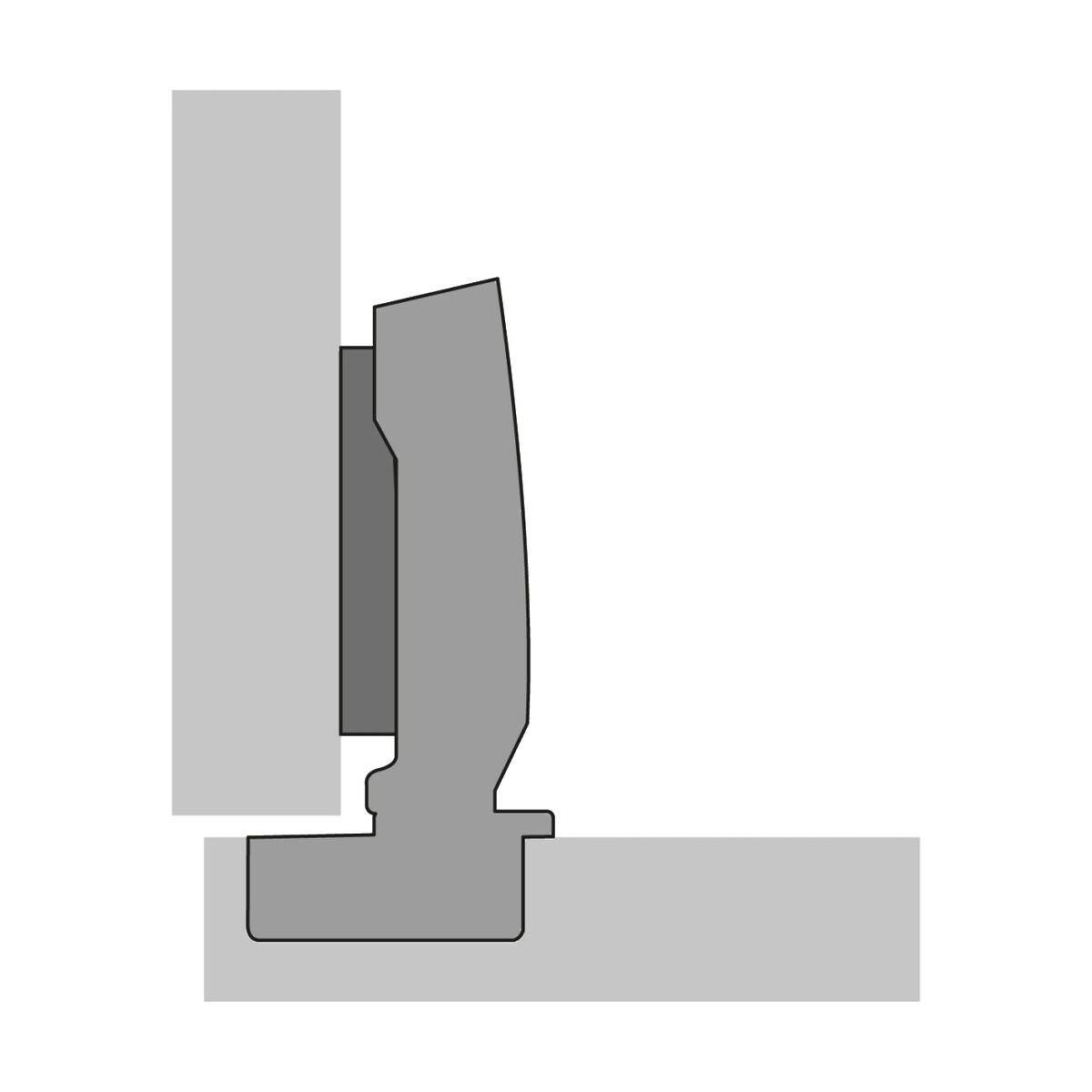

  • Door mounting option overlay

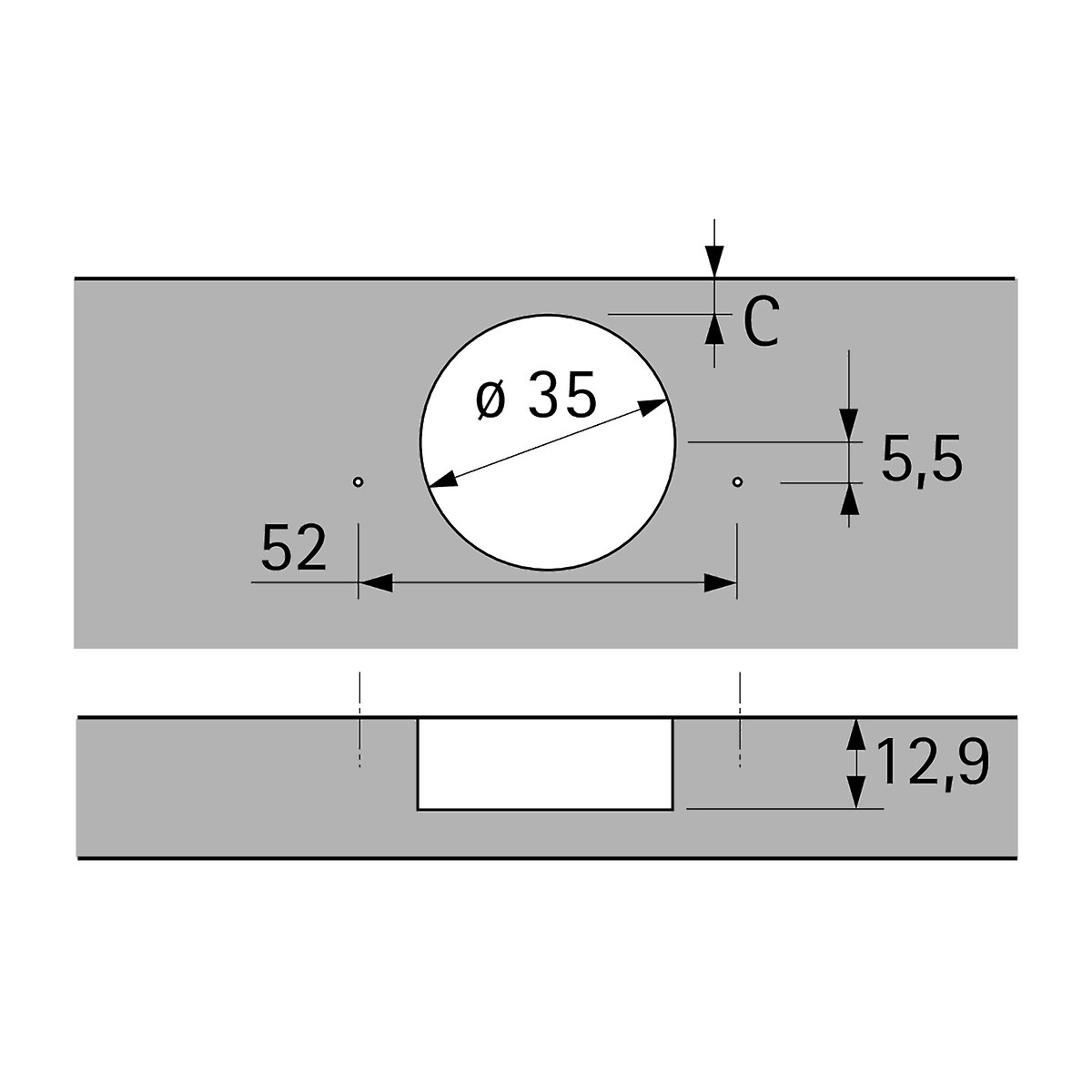

  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 12.8 mm

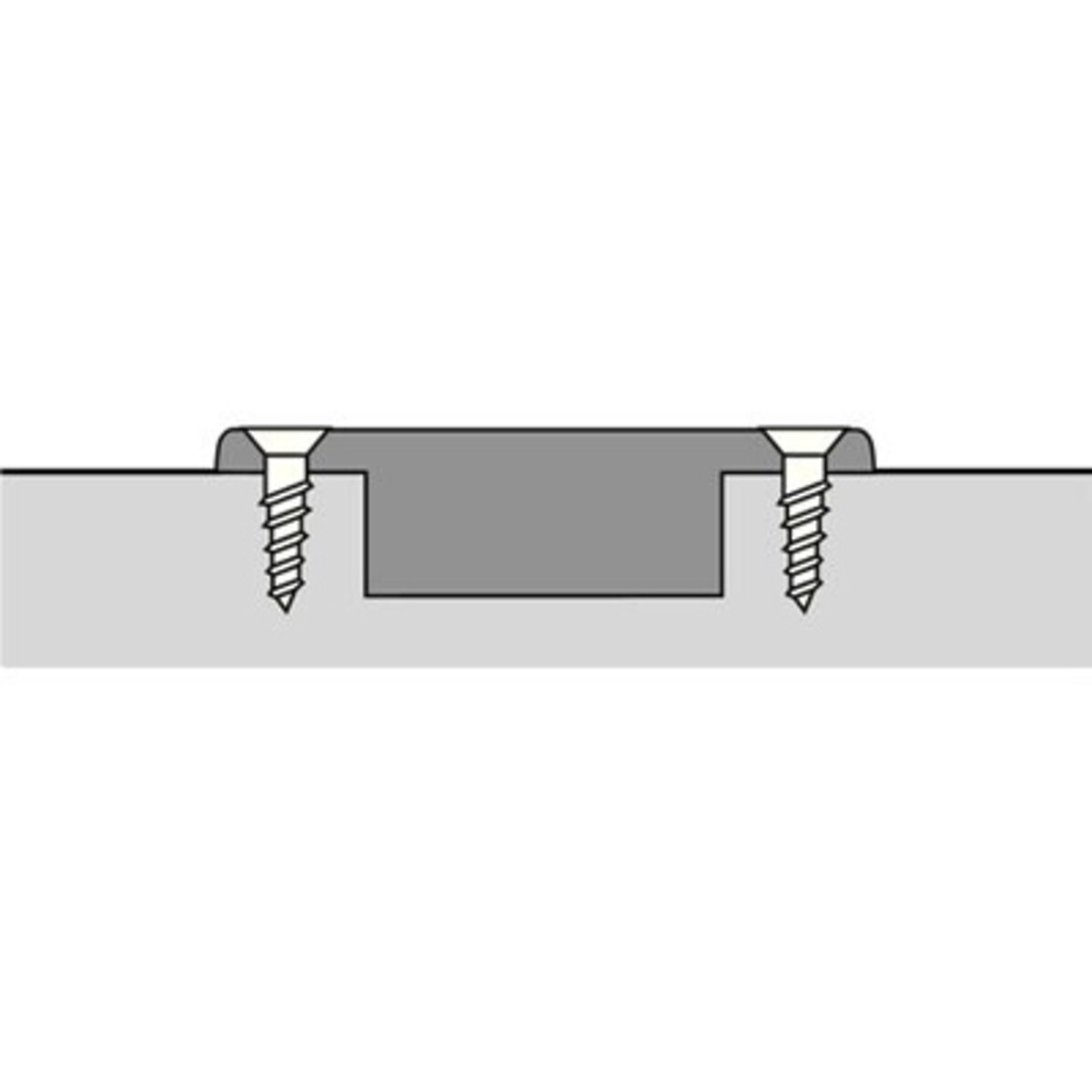

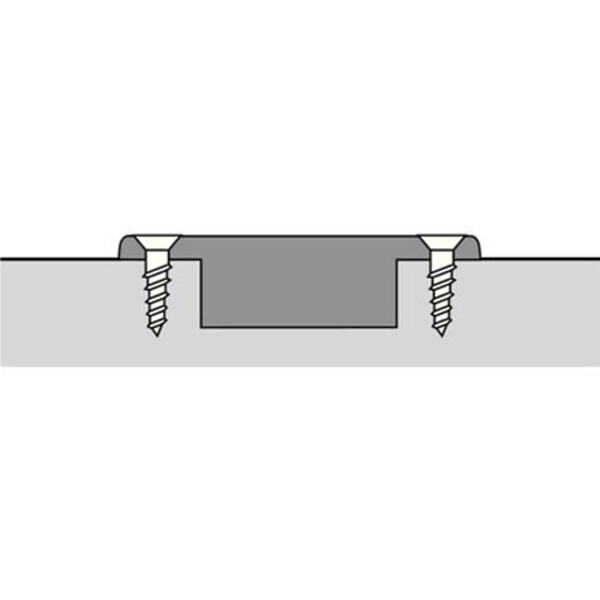

  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Box Qty 200
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 8.04

Please Login to view your pricing
