Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
Hettich 110º Soft Close - INSET - Screw On - Hettich Pattern
SKU: 9073607
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
110°
Hinge Mounting
Screw-on
Material / Finishes
Zinc / Steel
Overlay
Inset

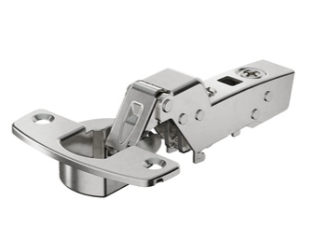

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm
  • Door mounting option inset

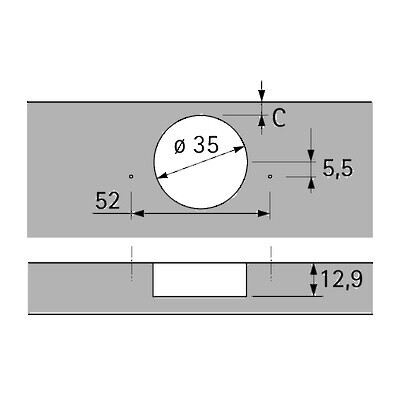

  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 12.8 mm
  • Installation for screwing on
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 10.02

Please Login to view your pricing
