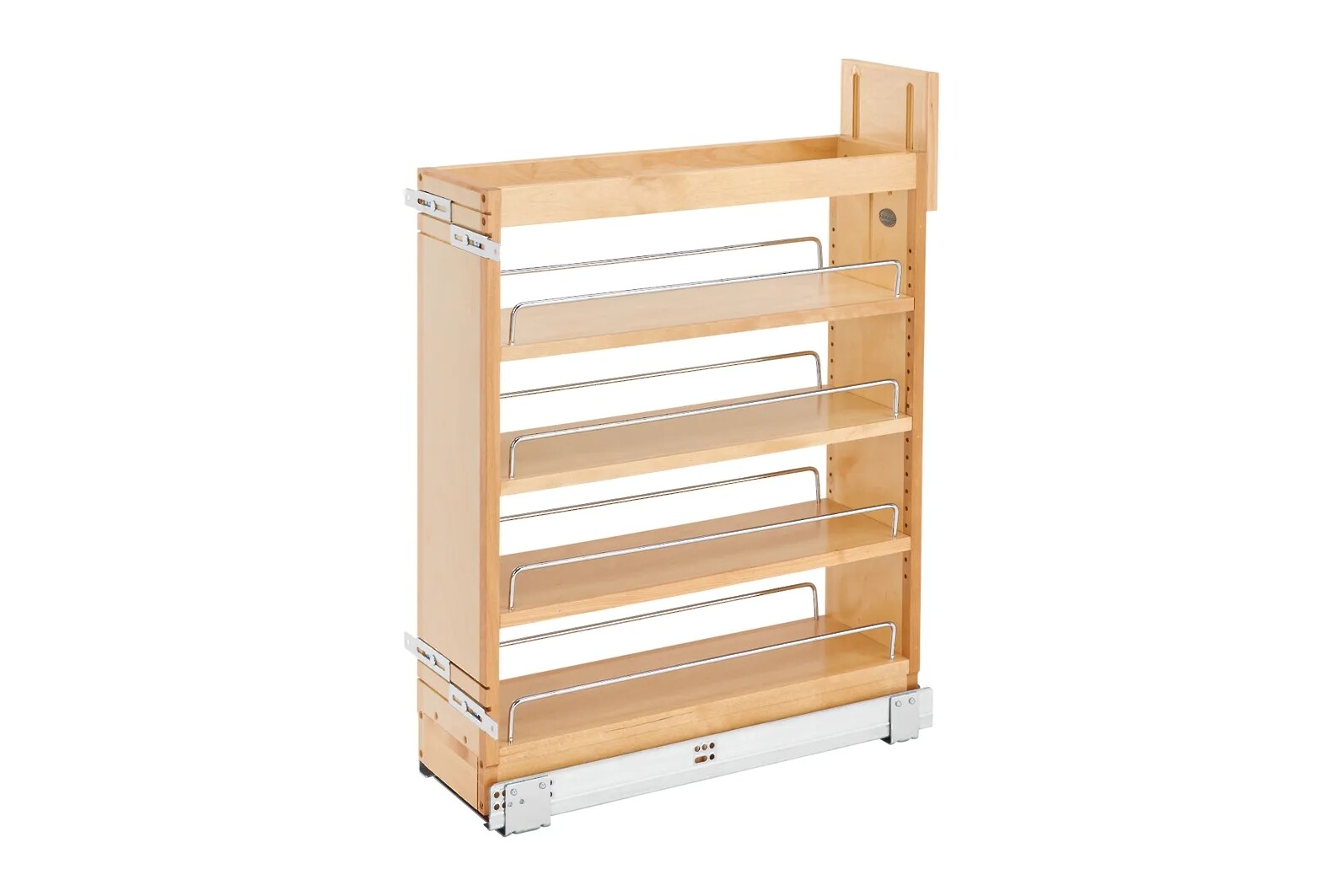

Rev-A-Shelf - 6-1/2" Maple Base Cabinet Pullout Organizer with Blumotion Soft-Close
Unit Width
6-1/2"
Unit Height
25-1/2" to 29-1/2"
Unit Depth
21-5/8"
Minimum Width Opening
7-1/4"
Minimum Height Opening
25-5/8"
Minimum Depth Opening
21-3/4"
Load Capacity
100lbs
Style Type
Under Mount Slides
Closing Type
Soft-Close
Material / Finishes
Maple / Chrome

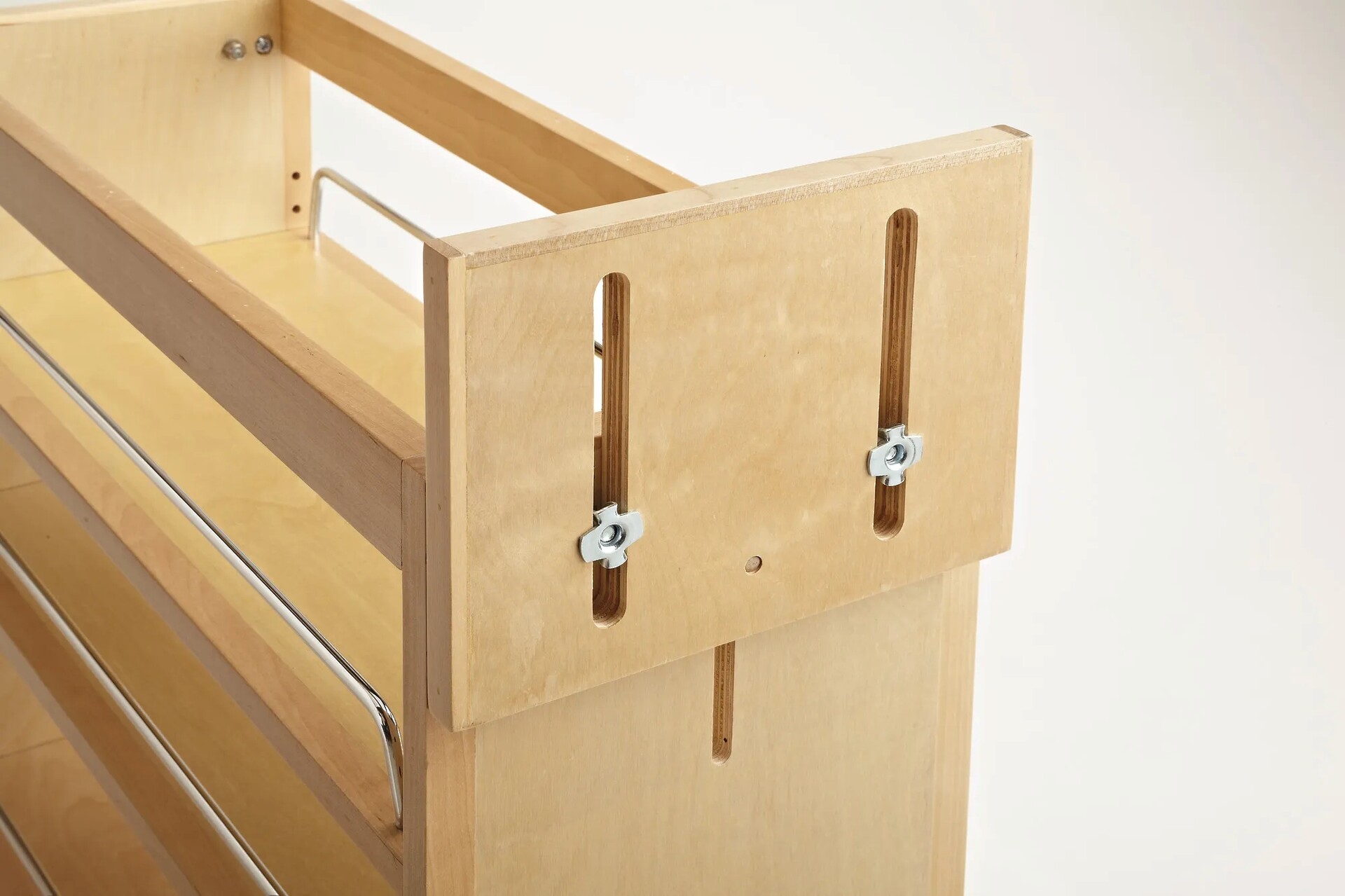

Rev-A-Shelf's beautiful base organizers feature adjustable shelves with chrome rails to help keep everything in its place. Units are available in two slide configurations ball-bearing or BLUMOTION soft-close. Door mounting is easy with our patented door mount brackets that provide up to 5 inches of flexibility for trouble free installation on any door style. These units are also available with an electric Servo drive system...simply tap the cabinet door and your unit pops out of the cabinet (electrical outlet required).

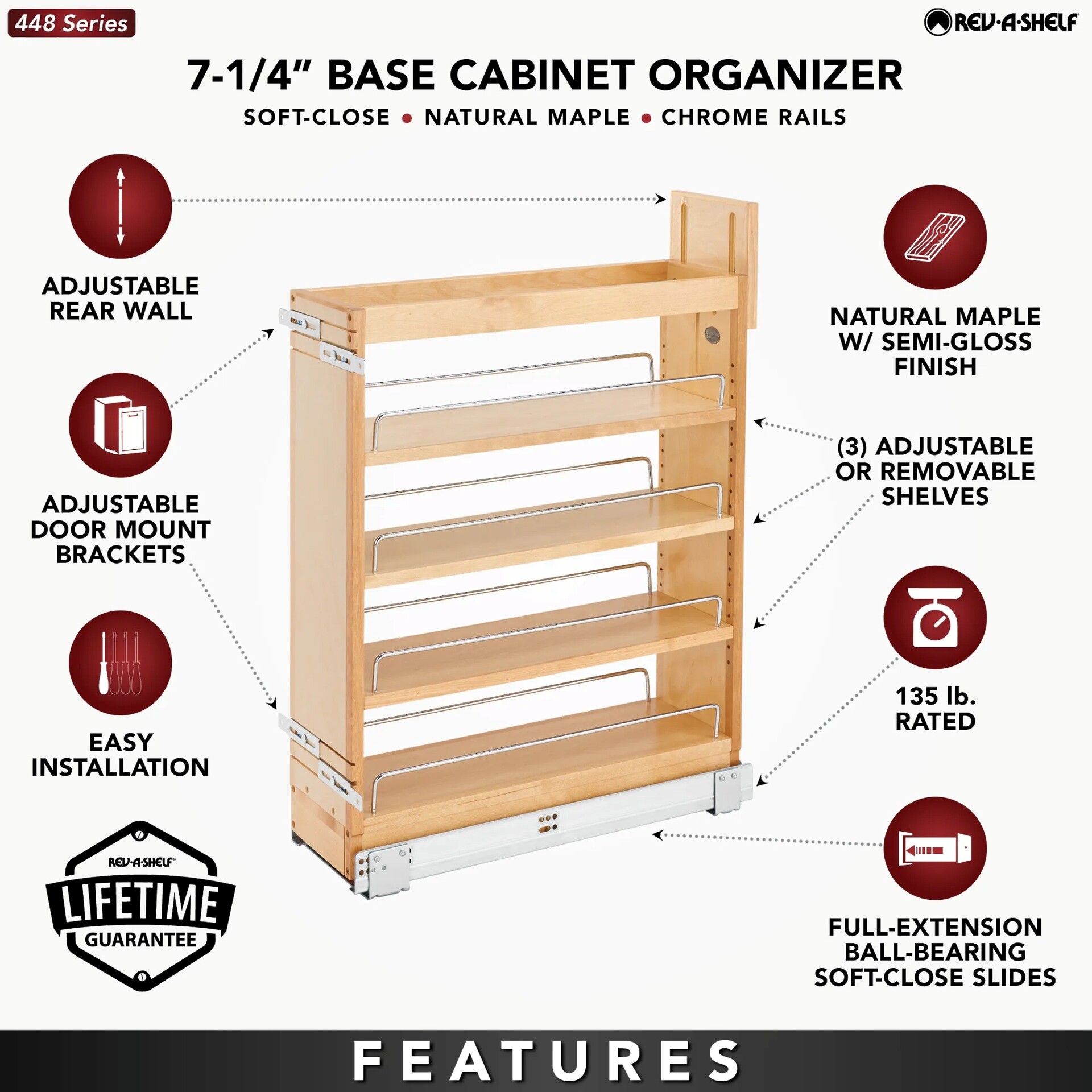

Features:

  • Fully Assembled Maple Wood construction with a clear coat finish
  • Fully assembled and fits into an existing full-height cabinet
  • Mounts to cabinet floor and attach existing cabinet door
  • Once installed simply attach your own cabinet door
  • Limited Lifetime Warranty

Includes:

1 pc -
Wood organizer
1 pcs -
Static shelf with Chrome rails
3 pcs -
Adjustable shelves with Chrome rails
1 set -

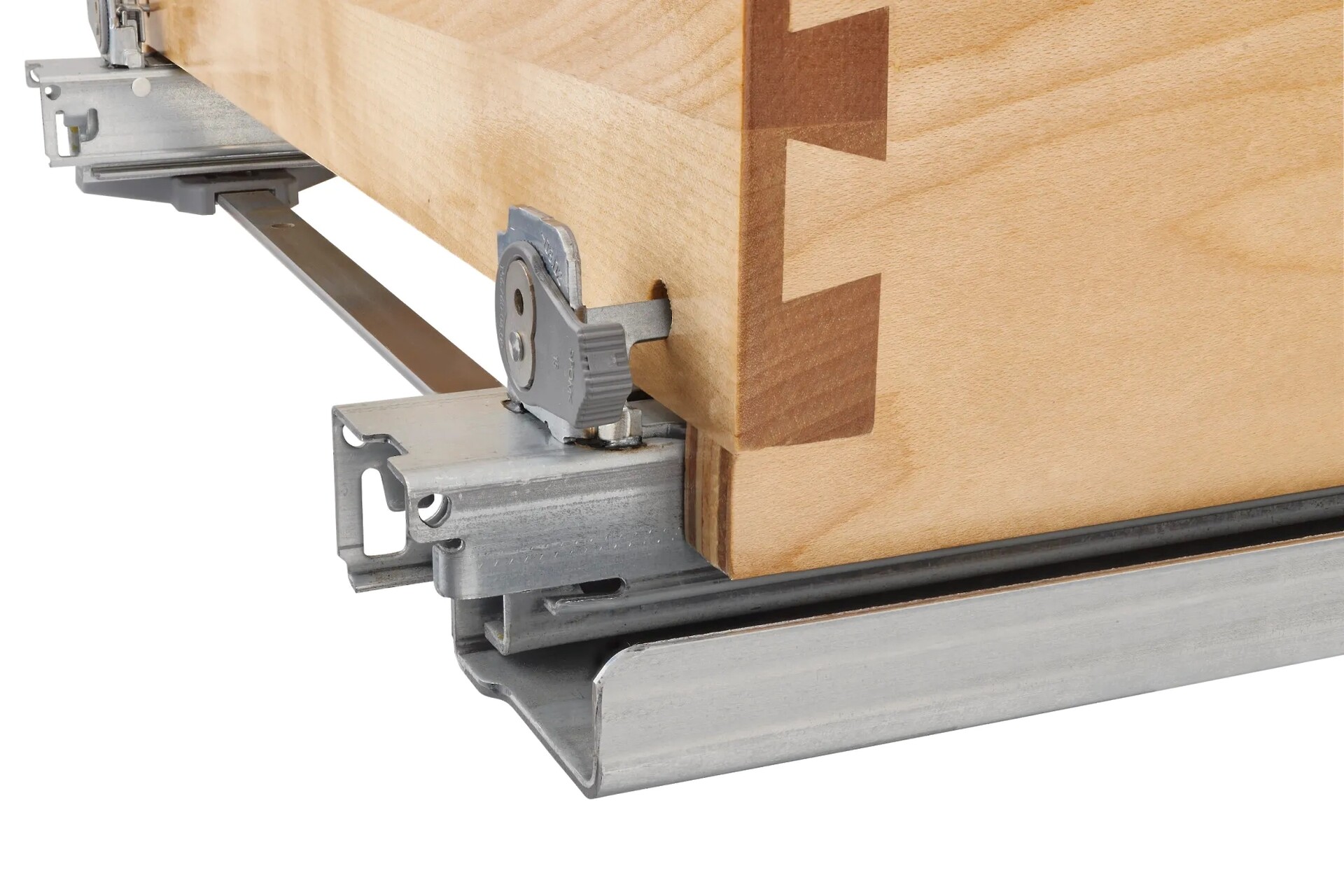

BLUMOTION Soft-Close Slides and Mounting hardware
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 615.03

Please Login to view your pricing
