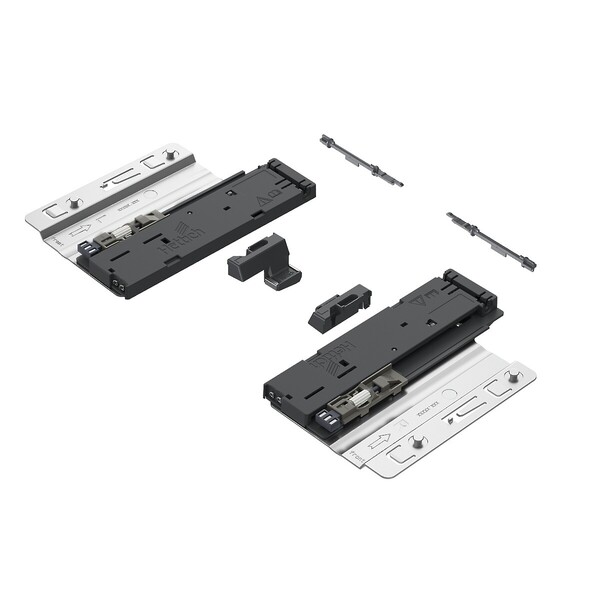

Hettich Quadro 5D - Push to open Silent System, 10 - 30 kg
Hettich Quadro 5D - Push to open Silent System, 10 - 30 kg
Hettich Quadro 5D - Push to open Silent System, 10 - 30 kg
SKU: 9257896
Brand
Hettich
Load Capacity
30kg
Can use AvanTech YOU drawer system on Quadro V6 YOU with Silent System.
Can use wooden drawer on Quadro V6 5D drawer runner and Quadro V6 YOU drawer runner with Silent System.
Optional synchronisation possible.
Requires Stability Rod - Sold Separately

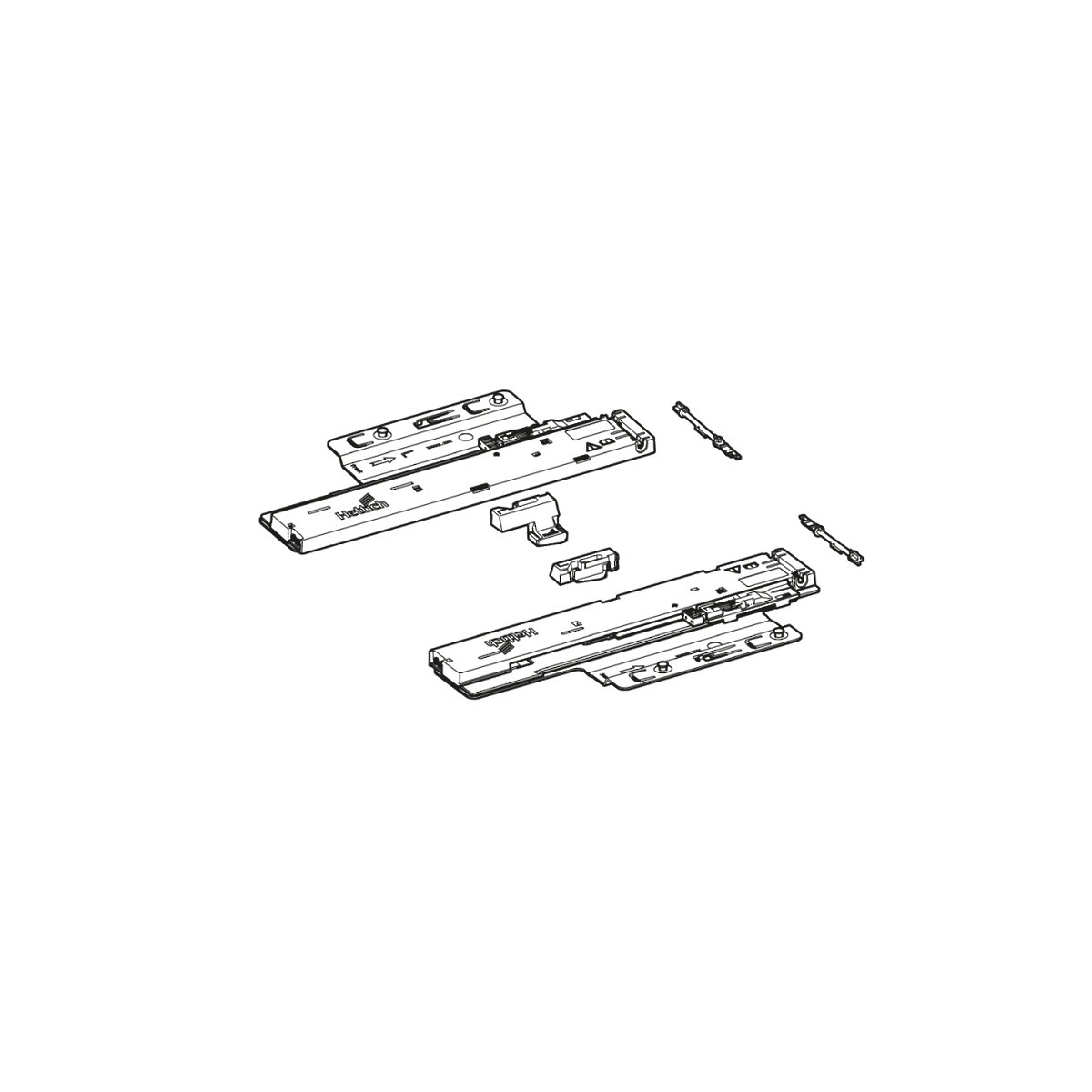

Includes:

  • 1 Push to open Silent unit, left and right
  • 1 activator, left and right
  • 2 adapters for synchronisation

Application:

  • AvanTech YOU / Quadro V6 YOU
  • Wooden drawer / Quadro V6 YOU
  • Wooden drawer / Quadro V6 5D
Aventech YOU double walled drawer system Push to Open Data Sheet
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 74.20

Please Login to view your pricing
