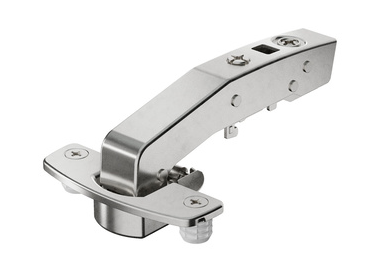

Hettich Blind Corner Soft Close - Dowel - Blum Pattern
Hettich Blind Corner Soft Close - Dowel - Blum Pattern
Hettich Blind Corner Soft Close - Dowel - Blum Pattern
Hettich Blind Corner Soft Close - Dowel - Blum Pattern
Hettich Blind Corner Soft Close - Dowel - Blum Pattern
Hettich Blind Corner Soft Close - Dowel - Blum Pattern
SKU: 9088045
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
95°
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel
Overlay
Blind Corner

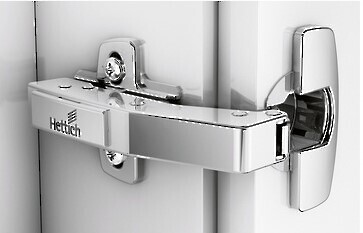

  • Sensys angle hinge W90
  • With integrated Silent System, with self closing feature (Sensys 8639i W90)
  • Quality classification under EN 15570, Level 3
  • Opening angle 95°
  • For door thickness 15 - 28 mm
  • Door mounting option inset

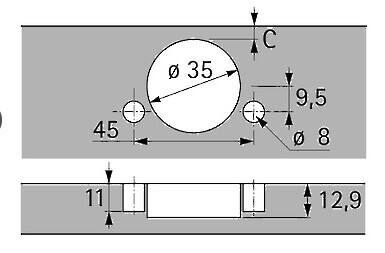

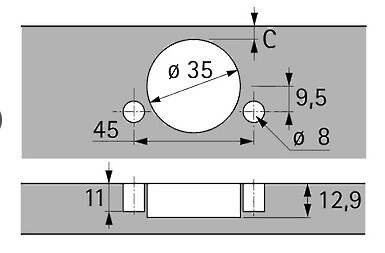

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation for pressing in
  • Integrated adjustment of door offset +1 mm / -2 mm
  • Integrated reveal adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • steel nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 15.46

Please Login to view your pricing
