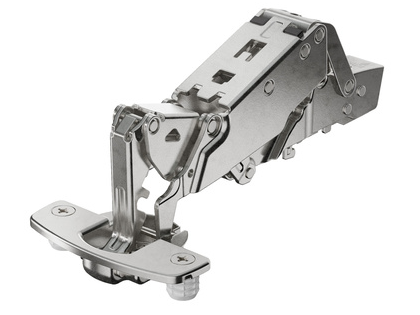

Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
Hettich 165º Zero Protrusion **SELF** Close - Dowel - Hettich Pattern
SKU: 9099601
View related products
Brand
Hettich
Closing Type
Self / Regular-Close
Opening Degree
165º "Zero Protrusion"
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel
Overlay
Full Overlay
  • Sensys wide angle hinge, with zero protrusion
  • Without Silent System, with self closing feature (Sensys 8657)
  • Quality classification under EN 15570, Level 3
  • Opening angle 165°
  • For door thickness 15 - 32 mm
  • Door mounting option overlay
  • Drilling pattern TH 52 x 5,5 mm
  • Cup depth 11.6 mm
  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel / die-cast zinc nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 10.42

Please Login to view your pricing
