Hettich 110º Soft Close INSET - Dowel - Blum Pattern
Hettich 110º Soft Close INSET - Dowel - Blum Pattern
Hettich 110º Soft Close INSET - Dowel - Blum Pattern
Hettich 110º Soft Close INSET - Dowel - Blum Pattern
Hettich 110º Soft Close INSET - Dowel - Blum Pattern
Hettich 110º Soft Close INSET - Dowel - Blum Pattern
SKU: 9073622
View related products
Brand
Hettich
Closing Type
Soft-Close
Opening Degree
110°
Hinge Mounting
Knock-in Dowel
Material / Finishes
Zinc / Steel
Overlay
Inset

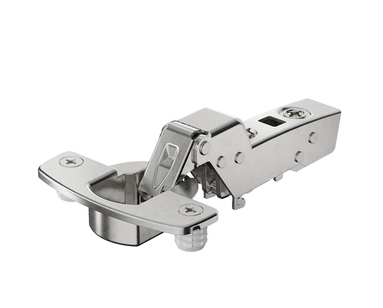

  • Sensys 110° hinge
  • With integrated Silent System, with self closing feature (Sensys 8645i)
  • Quality classification under EN 15570, Level 3
  • Opening angle 110°
  • For door thickness 15 - 24 mm
  • Door mounting option inset

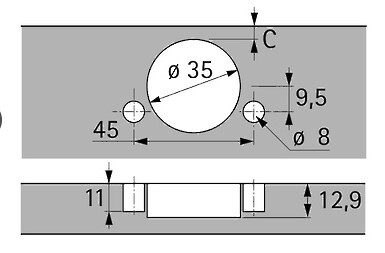

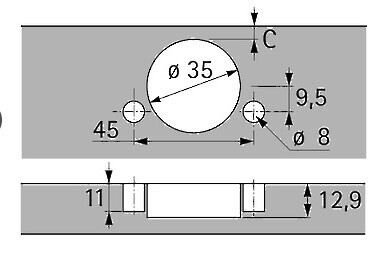

  • Drilling pattern TB 45 x 9,5 mm
  • Cup depth 12.8 mm
  • Installation for pressing in
  • Integrated overlay adjustment +2 mm / -2 mm
  • Integrated depth adjustment +3 mm / -2 mm
  • Height adjustment at mounting plate
  • Steel nickel plated
  • Box Qty. 50
MAIN PRODUCT FEATURES
Suggested Retail Price:
$ 10.66

Please Login to view your pricing
